Running League Sessions in Tournament Manager

Tournament Manager handles league play differently than a typical single-day tournament. This article walks through setting up Tournament Manager for a league's First Session, running each Ranking Session that follows, and closing out the League Finals Session for VEX Robotics Competitions.

It is written for Event Partners running a league who are ready to set up Tournament Manager.

Definitions of the terms used here are maintained in the central glossary.

For an overview of how leagues work and how to post one on events.vex.com, see Running Leagues. For match-count and settings recommendations referenced throughout this article, see the League Play Guide.

Before You Start

Connect your computer to the internet before creating the league's First Session. Tournament Manager downloads the team list, awards list, and league dates and venues from events.vex.com at that point, so this step can't be skipped.

Have a USB flash drive on hand as well, so you can save a backup copy of the tournament file at the end of each session.

Log In

The top-right corner of the events.vex.com page, zoomed in to show the VEX Robotics logo and the Login button highlighted beneath it.

On events.vex.com select Login in the top-right of the page.

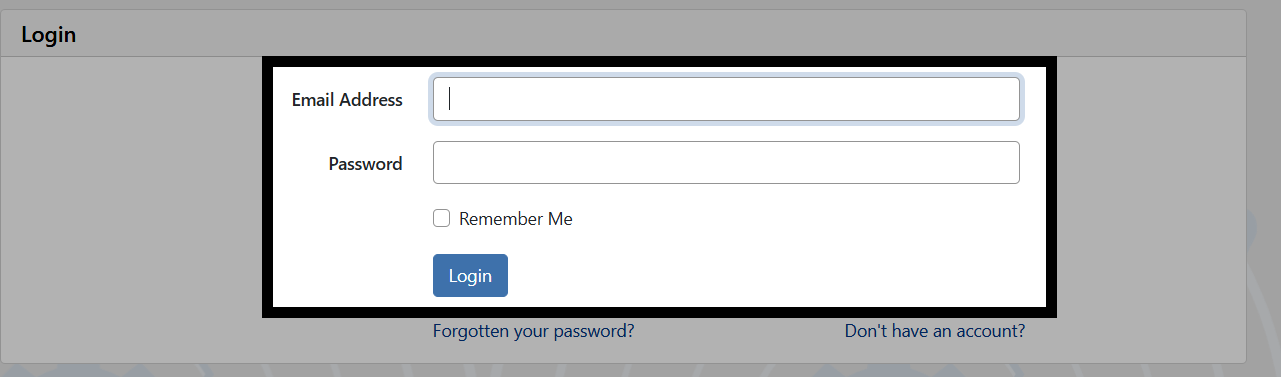

The login screen with a text box in the center to enter your email address, the password field directly below it, and a Login button beneath.

Enter your login credentials and select Login.

Set Up the League

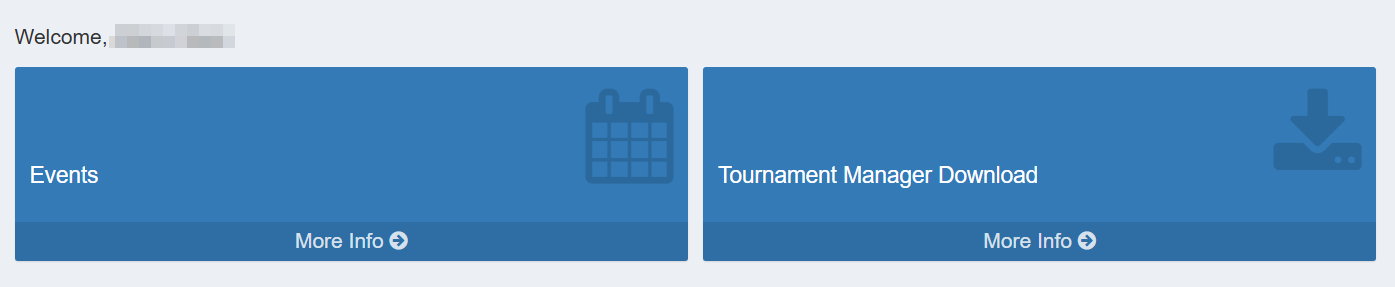

The Admin page showing its section tiles, with the Events tile highlighted.

On the Admin page, select the Events tile, then select your Event from the list of events.

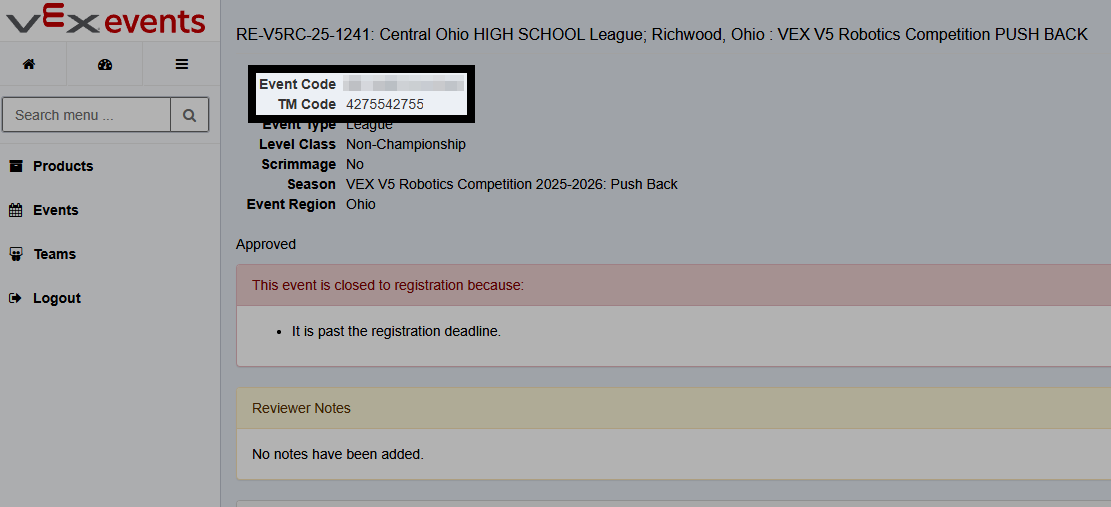

The event's details page showing the Event Code and Tournament Manager Code fields.

Record the Event Code and the Tournament Manager Code shown on the event's details page. You'll need both to set up Tournament Manager.

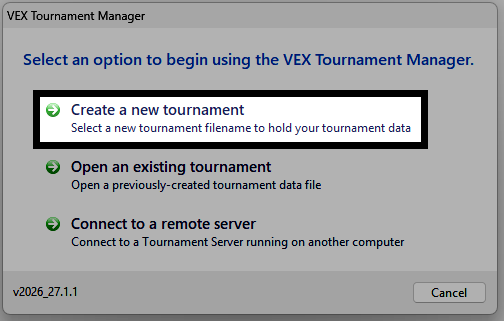

The Tournament Manager start screen with Create a New Tournament highlighted.

Open Tournament Manager and select Create a New Tournament.

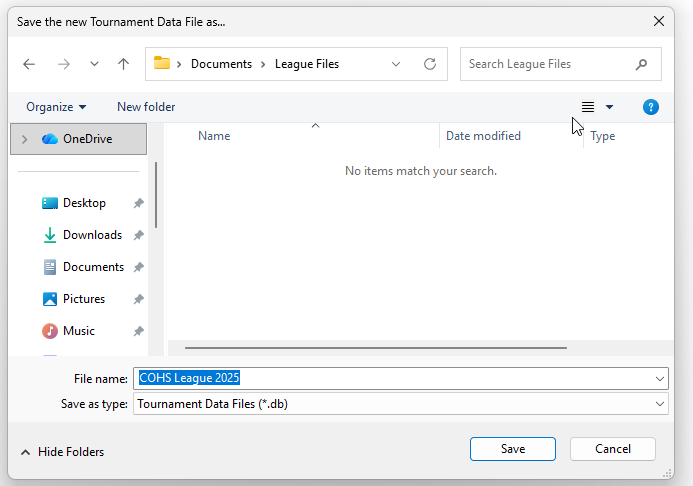

The Save the new Tournament Data File as dialog with a filename entered and the Save button highlighted.

Navigate to a folder on your computer, enter a name for the file, and select Save.

Important: The same Tournament Manager file must be used for every session in the league, including Finals. Make sure you know this file's name and location before moving on.

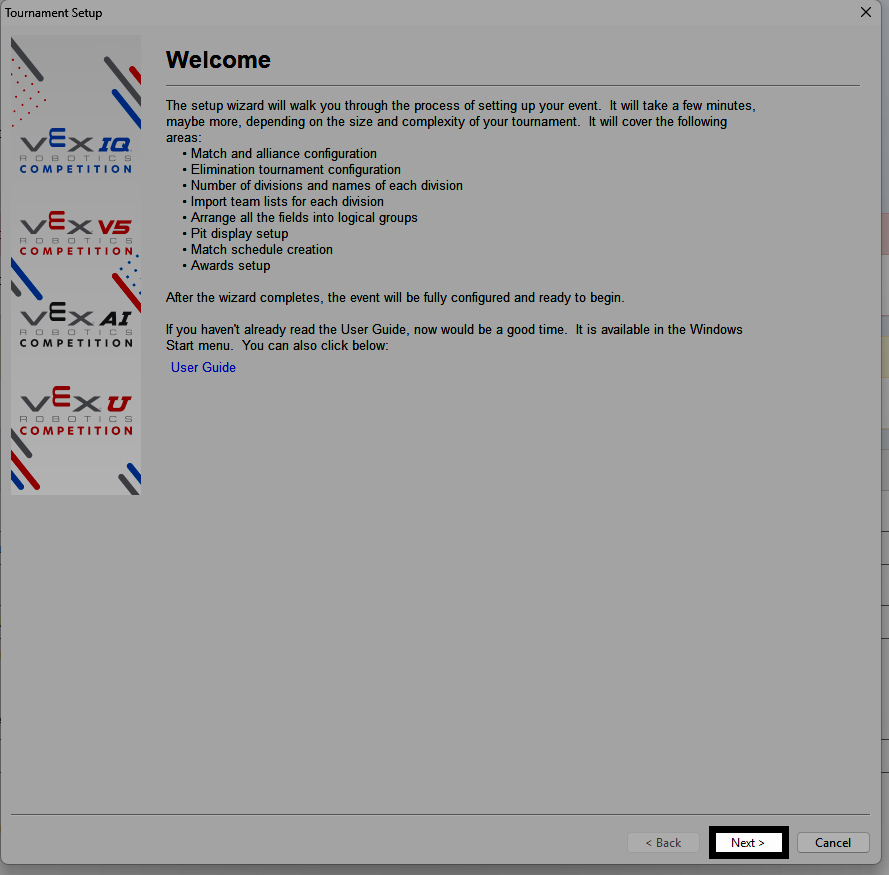

The Tournament Manager wizard's welcome screen with the Next button highlighted.

Read the welcome page, then select Next.

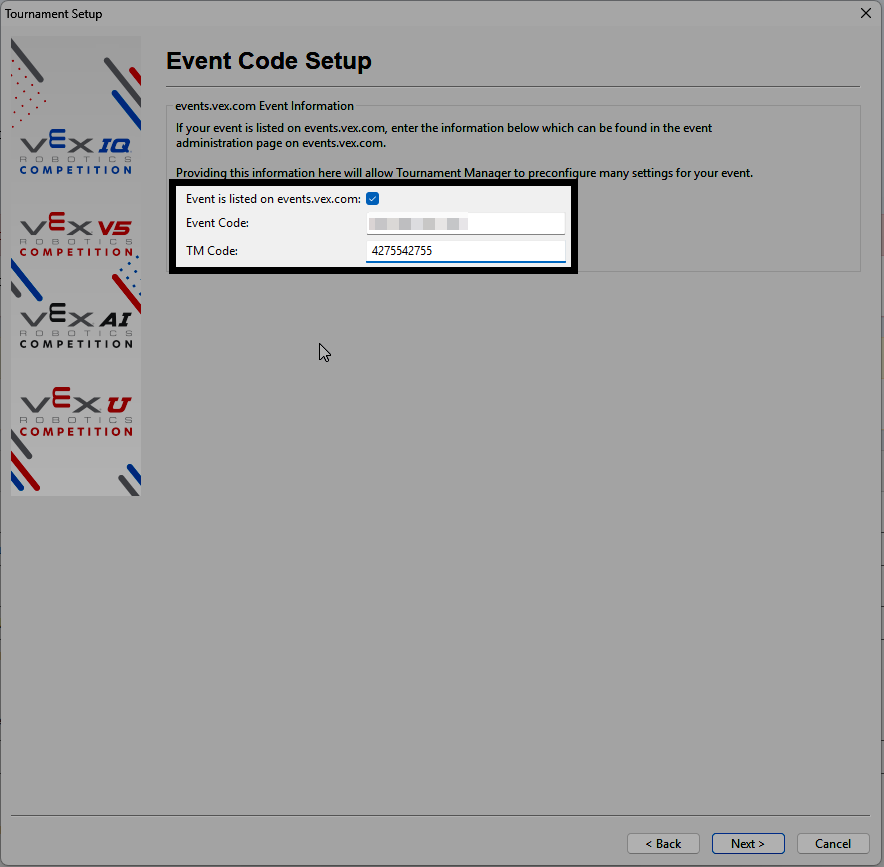

The Event Code Setup screen with the Event is listed on events.vex.com checkbox, Event Code field, and Tournament Manager Code field.

Select the checkbox for Event is listed on events.vex.com, then enter the Event Code and Tournament Manager Code from the event's details page.

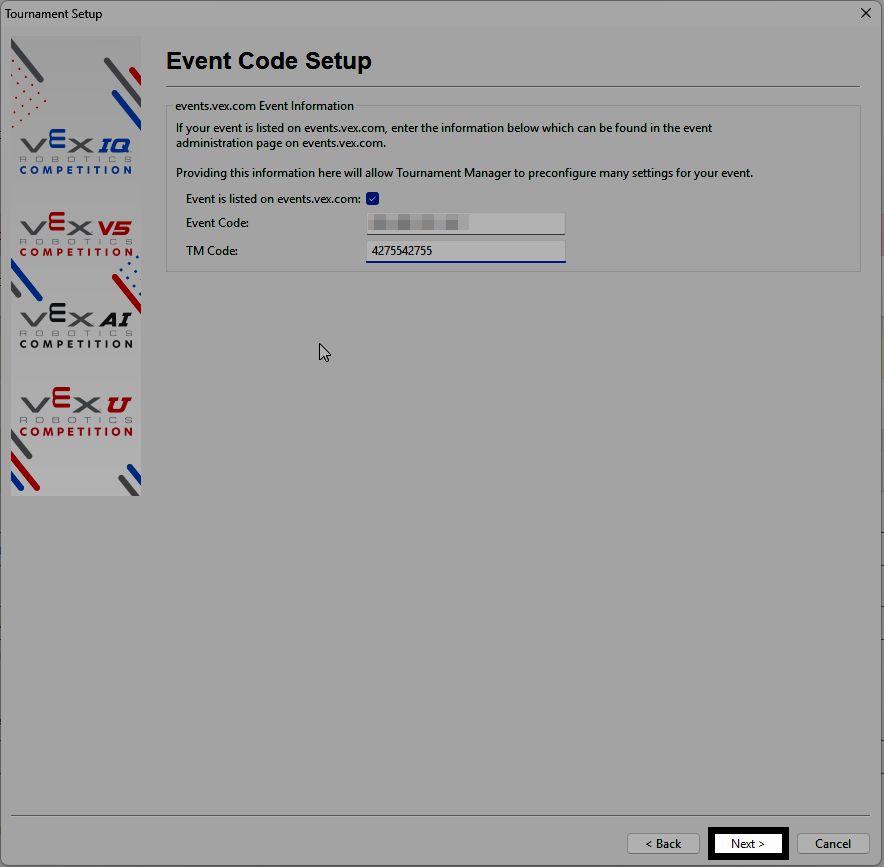

The completed Event Code Setup screen with the Next button highlighted.

Select Next.

A pop-up list of available league sessions with the first session and the Continue button highlighted.

When the available league sessions appear, select the first session and select Continue.

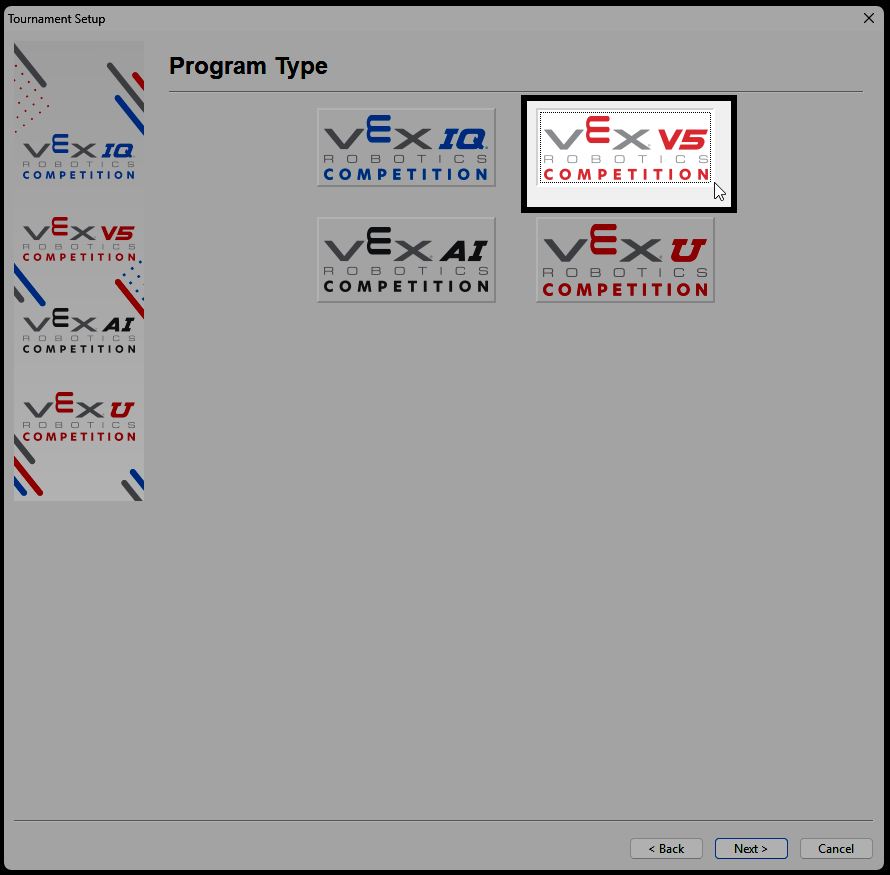

The Program Type screen with the correct program selected.

Select the correct program type.

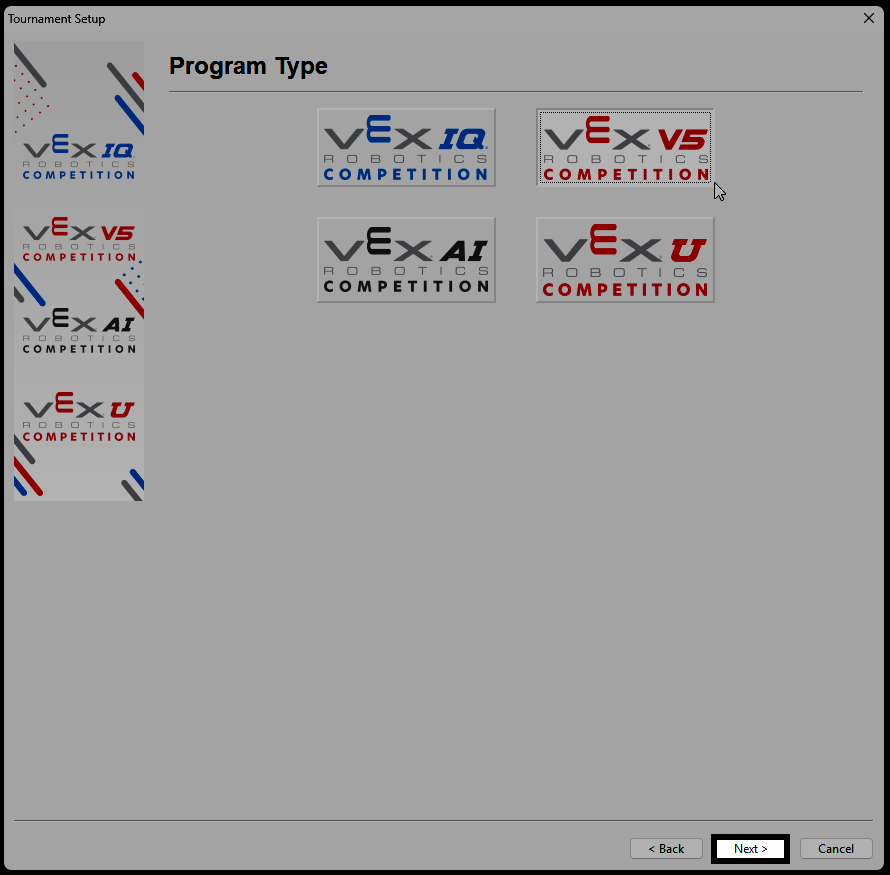

The Program Type screen with the Next button highlighted.

Select Next.

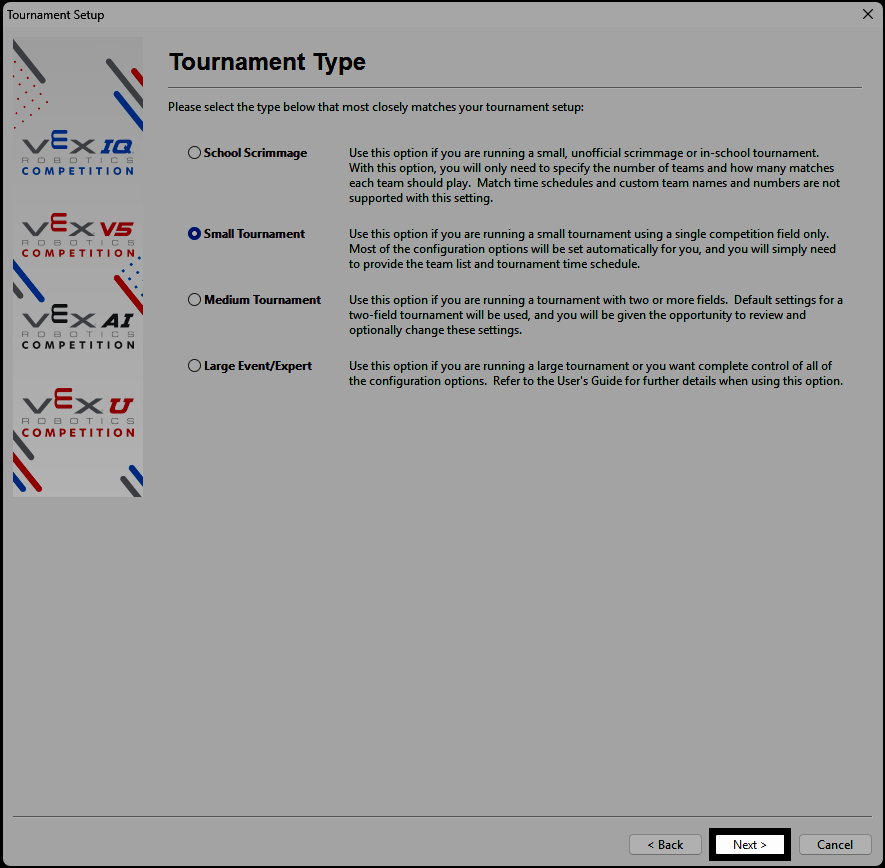

The Tournament Type screen showing Small, Medium, and Large options.

Most leagues use Small Tournament. Select Medium or Large if it fits your league better, then select Next.

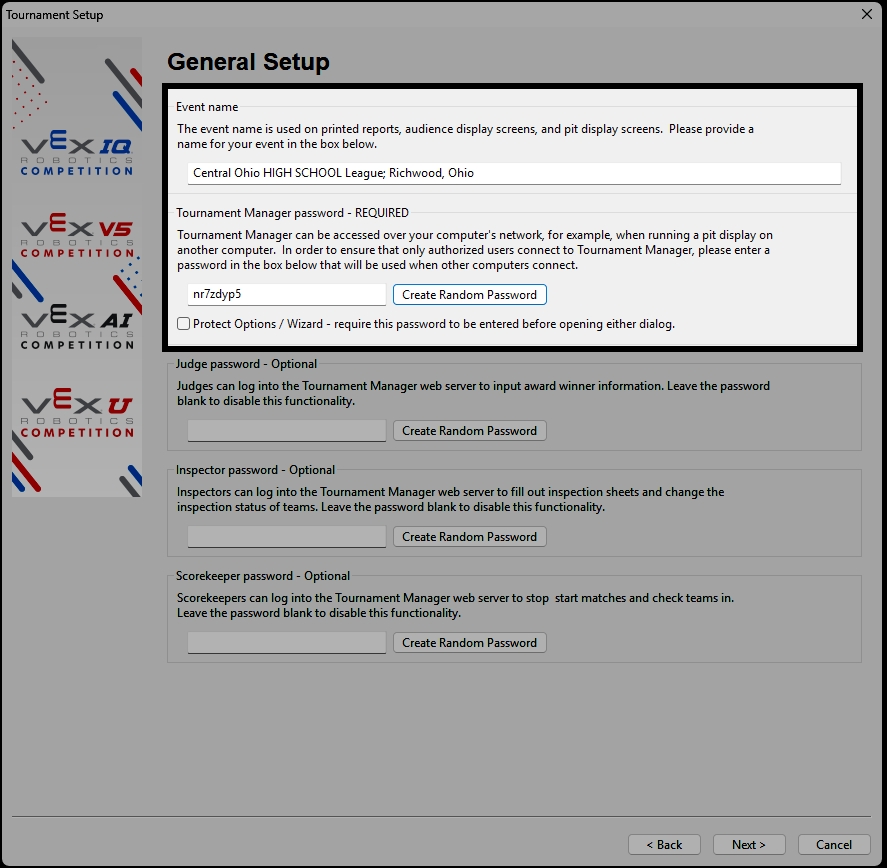

The General Setup screen showing the Event Name field and password field.

The Event Name is pre-filled from events.vex.com; change it if you'd like. Enter a unique password (used for Tournament Manager's web server functions and for connecting additional computers to this Tournament Manager instance).

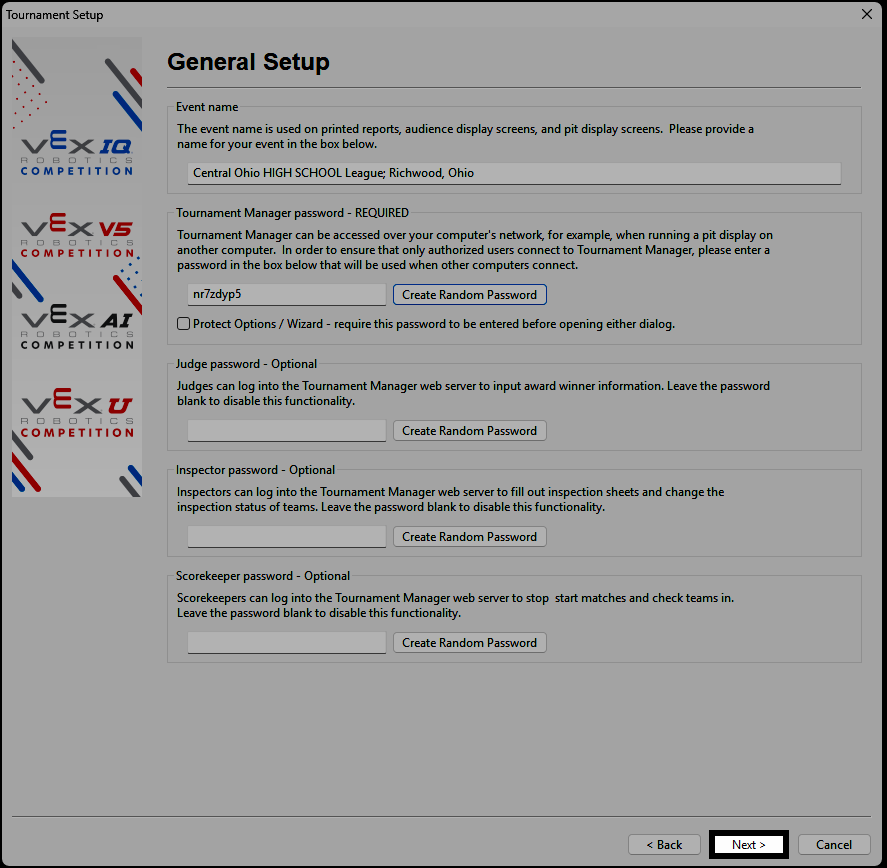

The General Setup screen with the Next button highlighted.

Select Next.

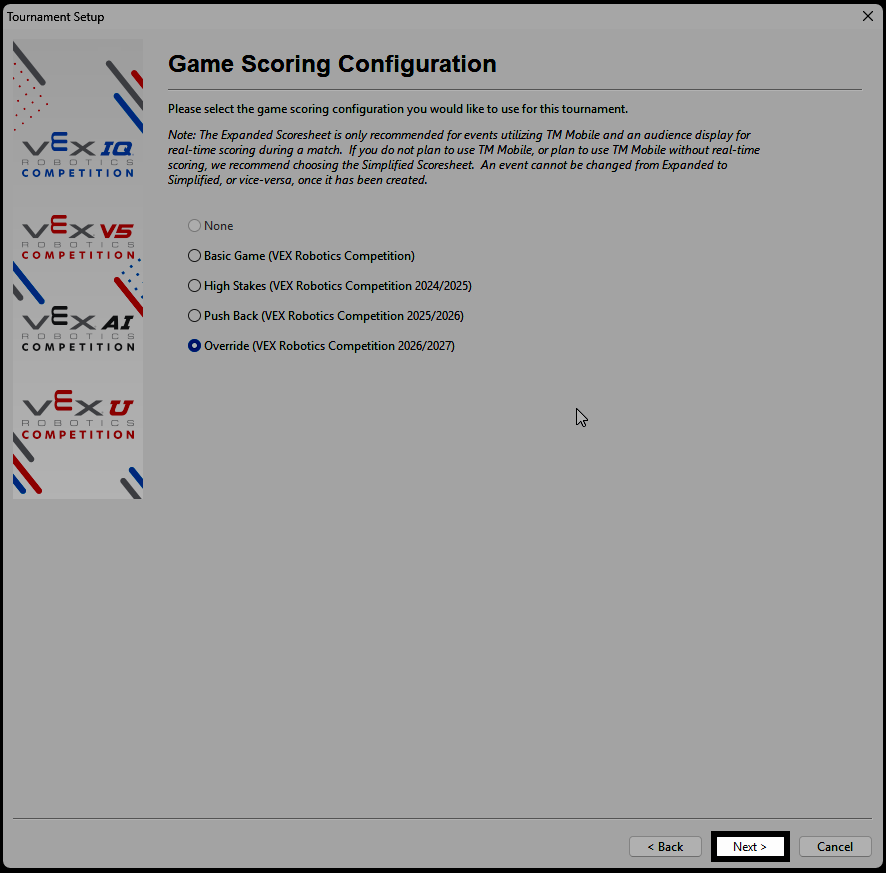

The Game Scoring Configuration screen with the current game selected and the Next button highlighted.

Confirm the current game is selected, then select Next.

The Team List screen showing teams downloaded from events.vex.com.

Confirm teams have downloaded from events.vex.com, or import them from the CSV file on events.vex.com, then select Next.

The Teams at League Session check-in screen with selectable team boxes.

Select the teams that have checked in. If check-in is still in progress, leave every box selected; if some teams aren't present once check-in ends, you can unselect them later and regenerate the match schedule. Select Next.

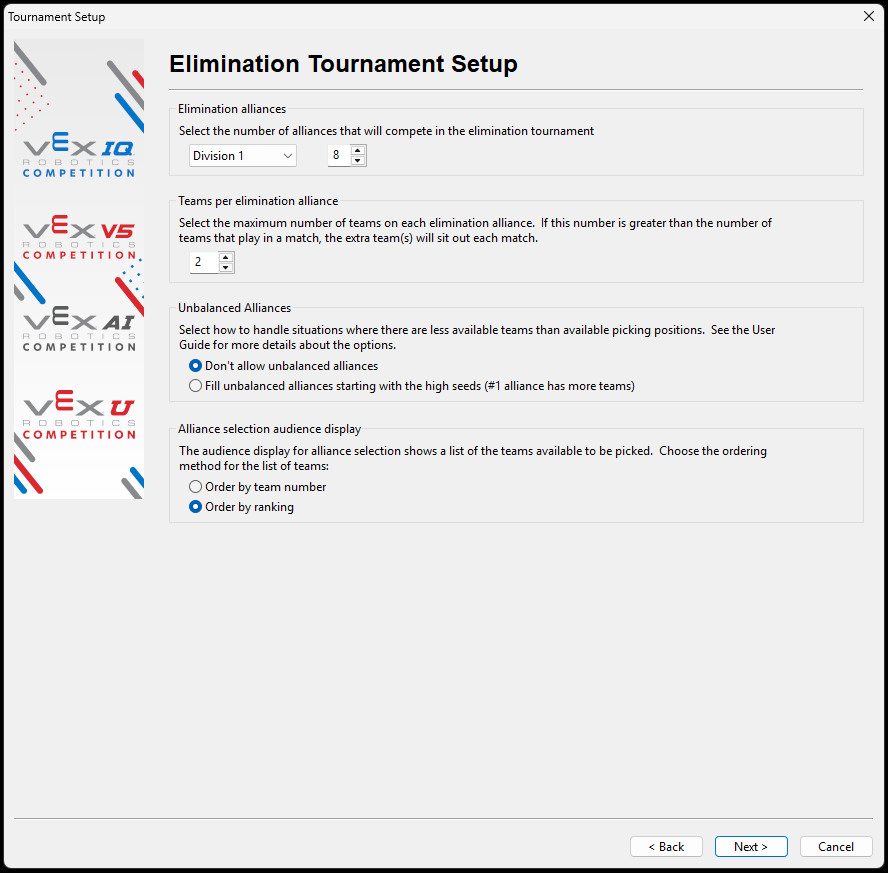

The Elimination/Finals Match Setup screen with default values shown.

The defaults work for most leagues. If skills matches will run at any Ranking Session or the Finals Session, add at least one Skills Challenge field. Check the League Play Guide for setting recommendations, and adjust as needed.

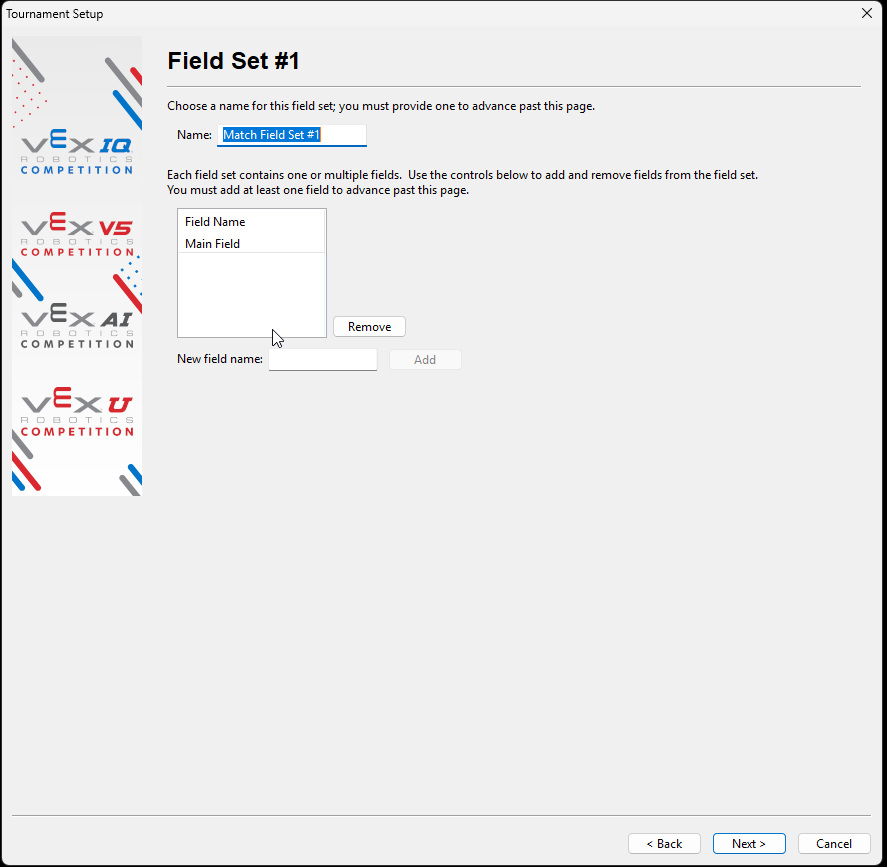

The Field Set screen for adding the fields available at the event.

Set up what fields your event space will have. Add as many fields as you have, then select Next.

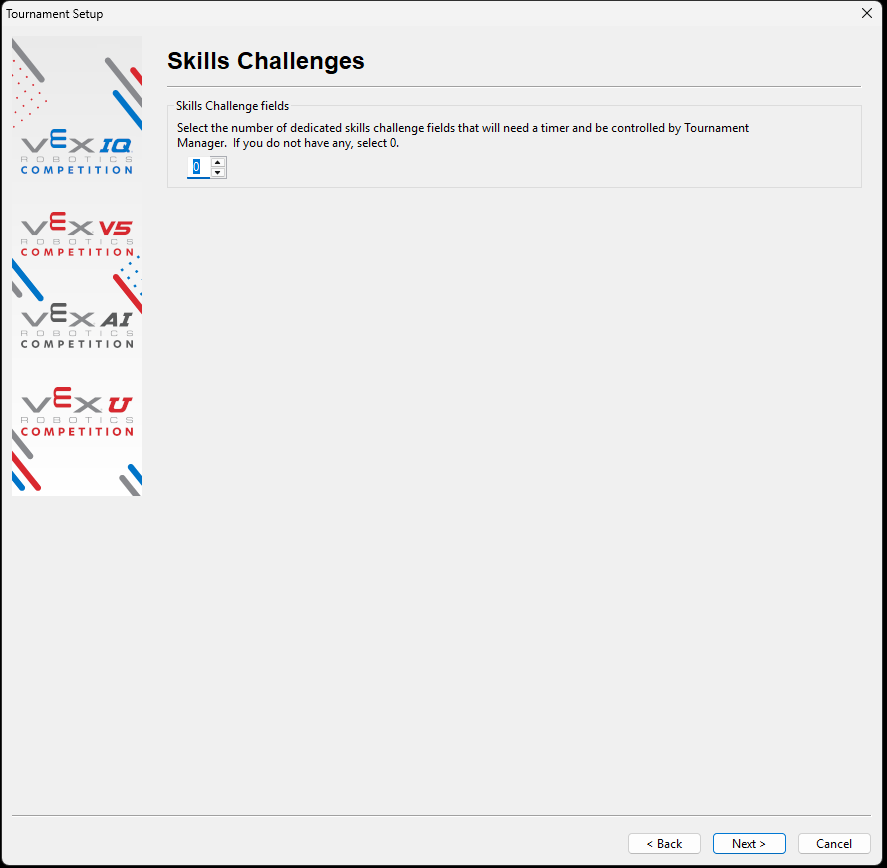

The Skills Challenges screen for entering the number of Skills Challenge fields.

Enter how many Skills Challenge fields you have, then select Next.

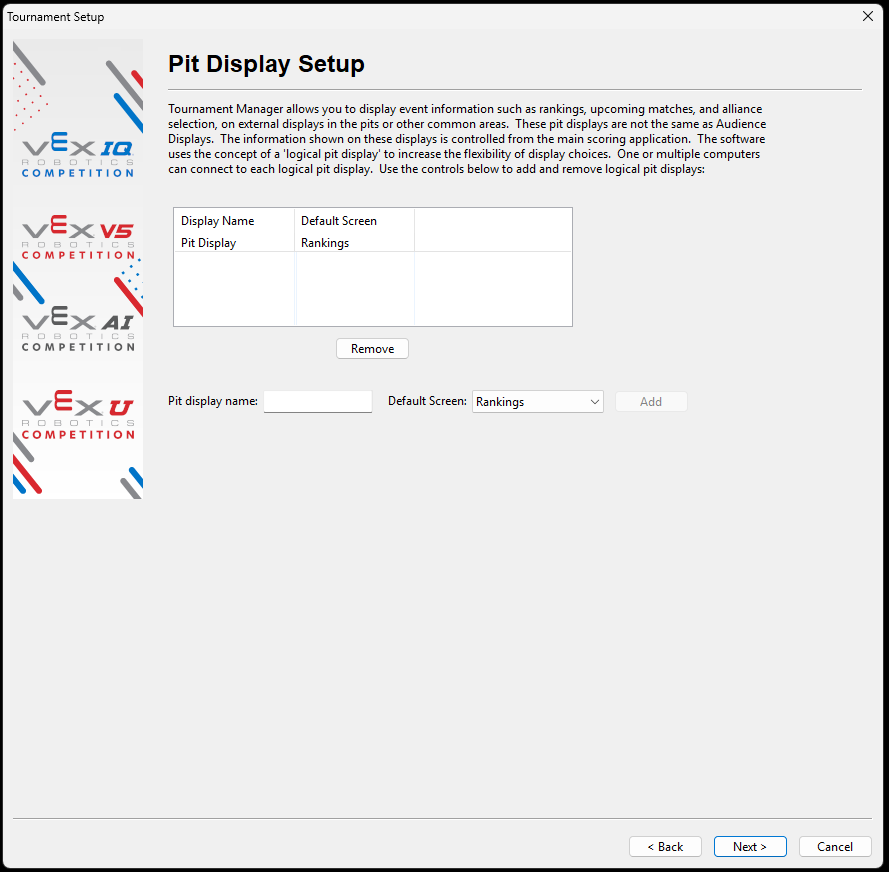

The Pit Display Setup screen for creating the event's Pit Displays.

Create the Pit Displays you'll be using during the Event, then select Next.

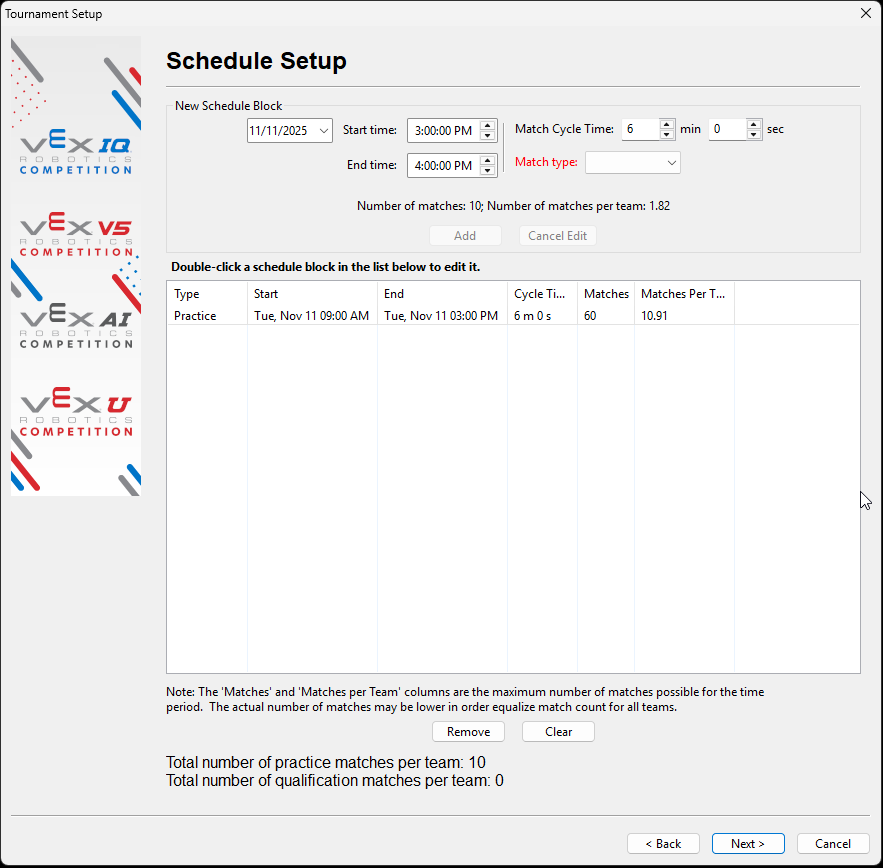

The Schedule Setup screen for adjusting the match schedule.

Adjust the schedule for the number of teams attending and the time available for this session. The League Play Guide has recommendations for how many matches to schedule per Ranking Session.

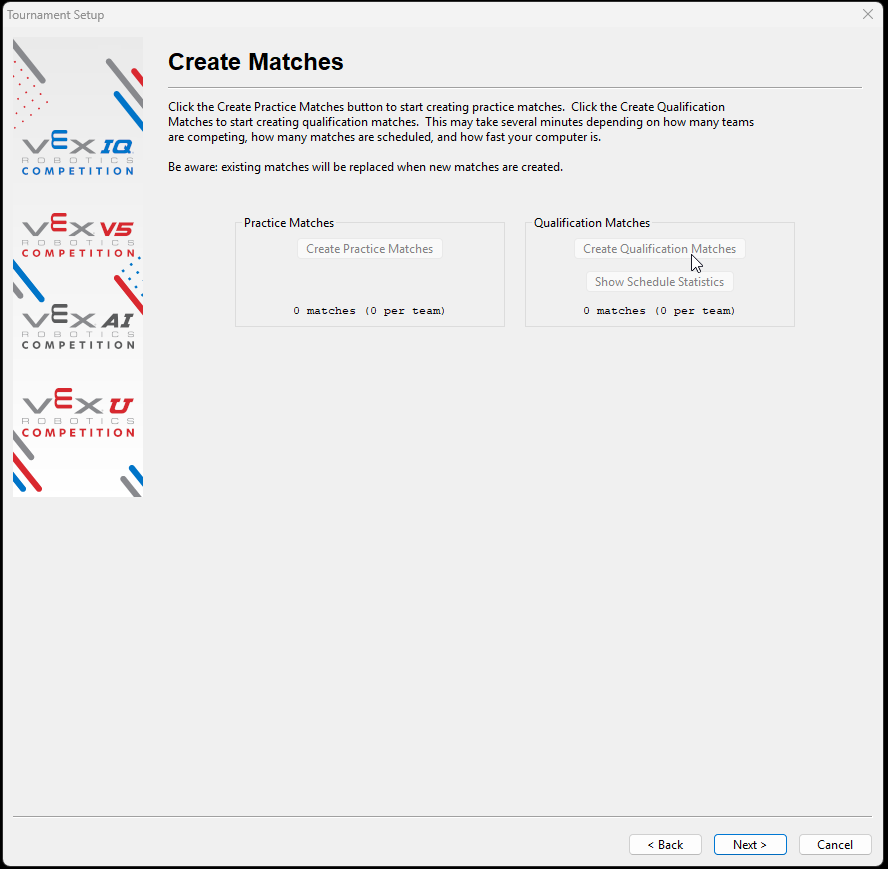

The Create Matches screen with default values shown.

The defaults work for most leagues; adjust as needed.

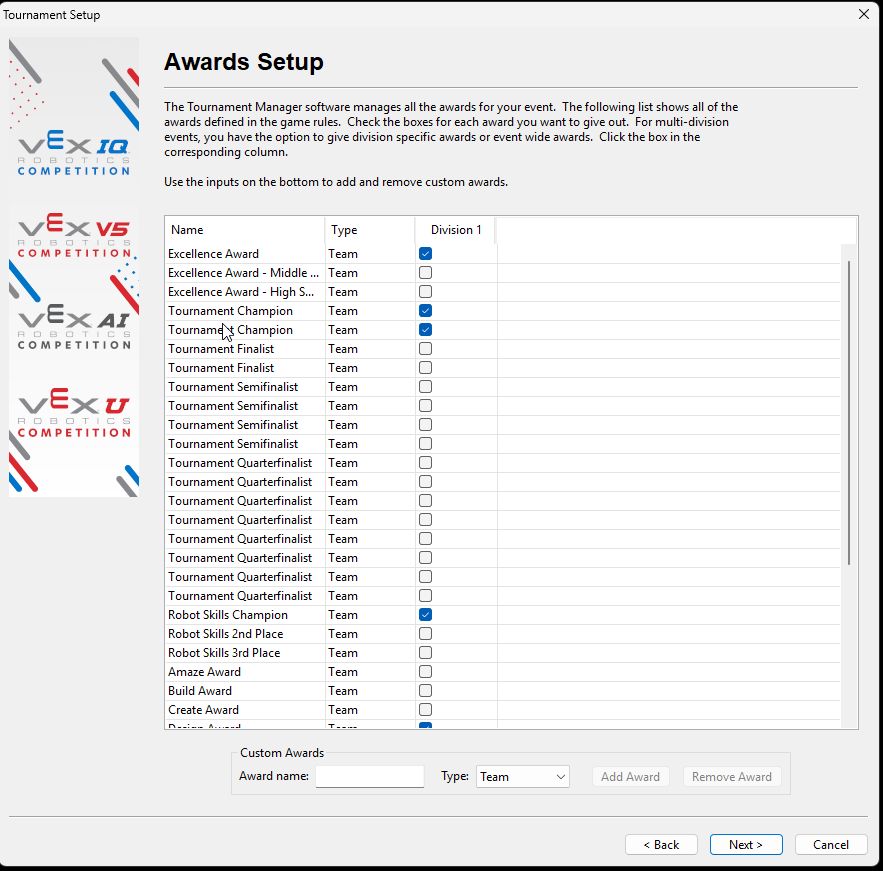

The Awards Setup screen showing awards autofilled from events.vex.com.

Confirm the awards that will be offered at the event. This will be autofilled using the Event Code and Tournament Manager Code from events.vex.com. Then select Next.

The Web Publishing Setup screen with live results publishing enabled by default.

The Web Publishing Setup will automatically post live results from your event to the event's page at events.vex.com by default. Select Next.

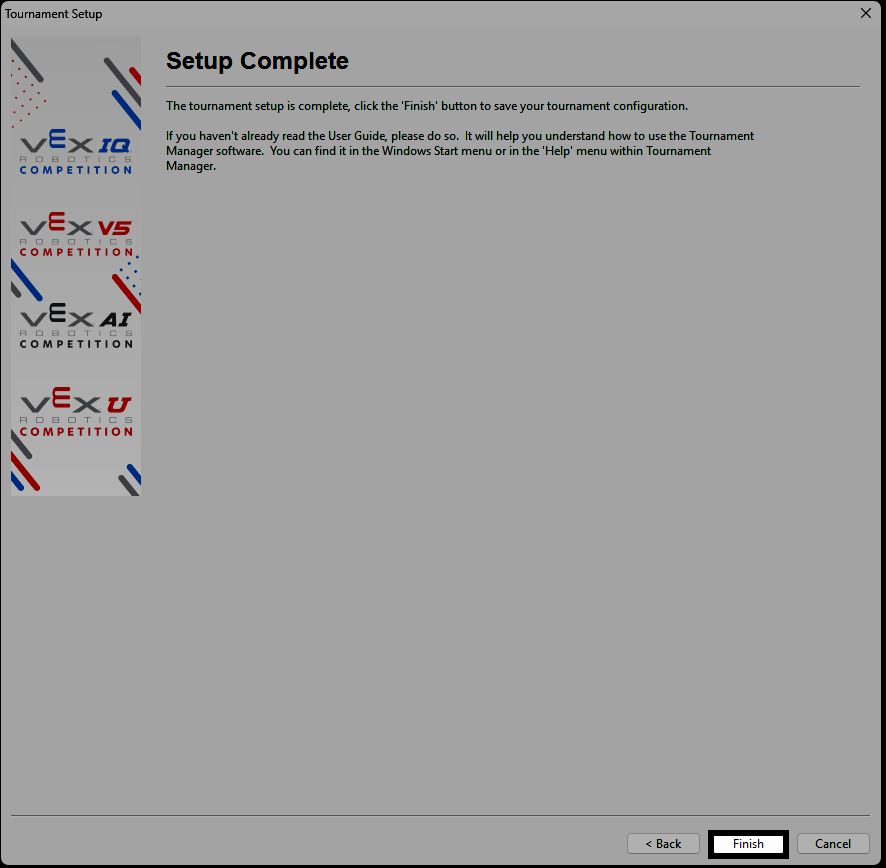

The Setup Complete screen with the Finish button highlighted.

All of the event setup is now complete. Select Finish.

If Teams Haven't Checked In

If any teams aren't present once check-in ends:

Unselect Absent Teams

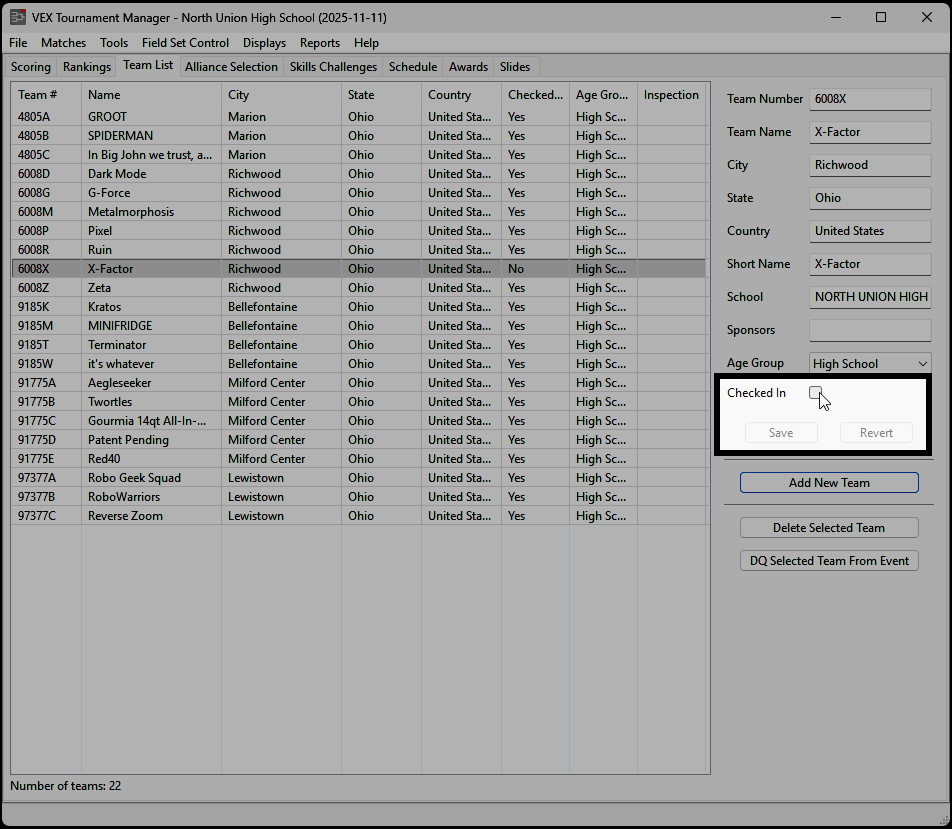

The Team List tab with a team's Checked In box unselected.

Select the Team List tab, select a team that isn't present, unselect its Checked In box on the right, and select Save. Repeat for each absent team.

Start Regenerating the Match Schedule

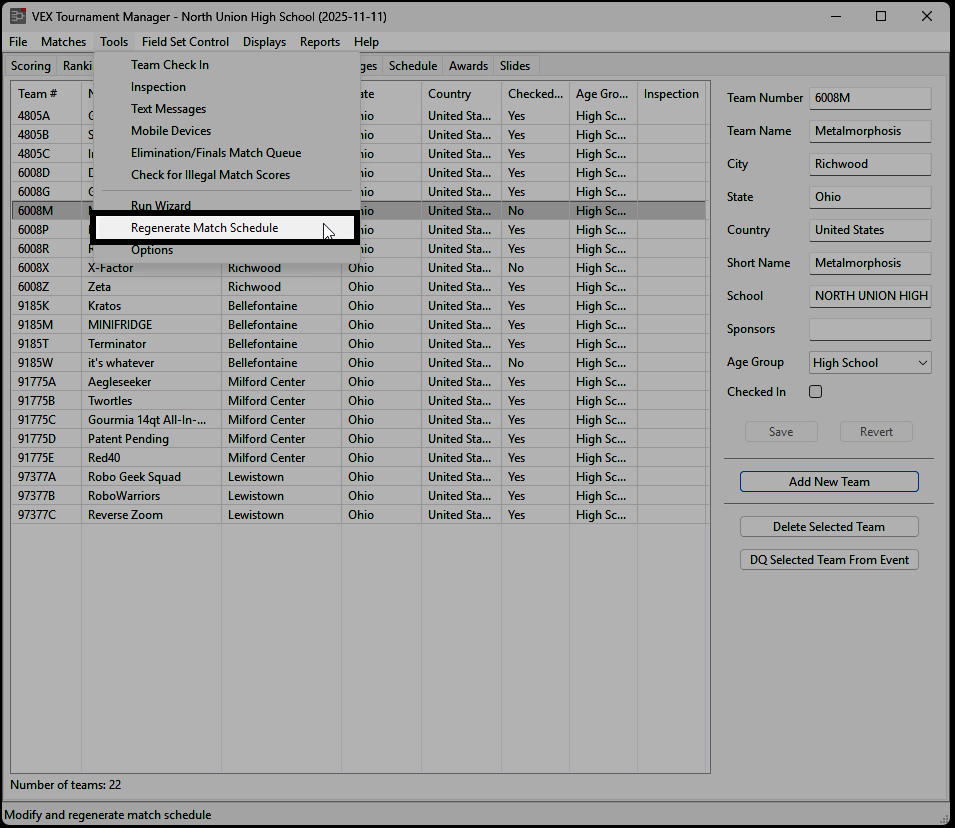

The Tools menu with Regenerate Match Schedule selected and the wizard's welcome screen.

Select Tools, then Regenerate Match Schedule. Read the welcome screen and select Next.

Exclude Teams That Haven't Checked In

The Checked In Teams screen with Exclude any teams that have not checked in selected.

Under Checked In Teams, select Exclude any teams that have not checked in. Adjust the match schedule if needed and select Next.

Create the New Schedule

The Create Qualification Matches screen with the Finish button highlighted.

Select Create Qualification Matches, then Next, then Finish to complete the new schedule.

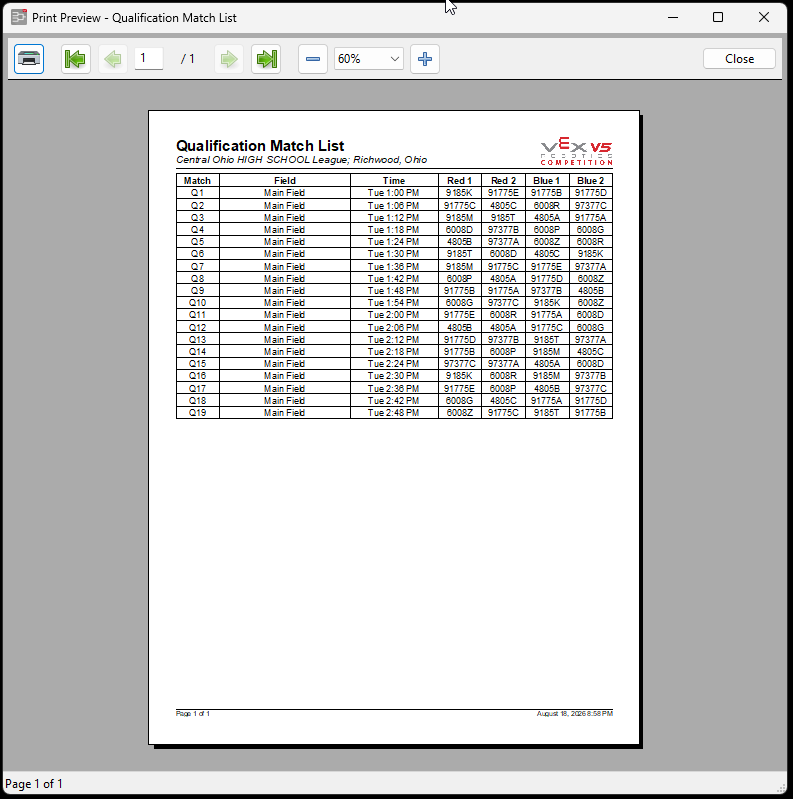

The Match List and Announcer Sheets print screen.

Print the Match List and Announcer Sheets, then run the session's matches.

Save a Backup Copy

The Save Copy of Tournament dialog with a USB drive selected as the save location.

Once the session's matches are complete, save a copy of the Tournament Manager file to a USB flash drive: select File, then Save Copy of Tournament, navigate to the USB drive, and select Save.

Important: You must use this session's Tournament Manager file to start the next session. If the next session runs on the same computer, use the copy already on that computer's hard drive; if it runs on a different computer, use the copy you just saved to the USB drive.

Important: Don't create a new tournament file for each session – doing so breaks the carryover of match results and rankings between sessions.

Save Logs or Export Data

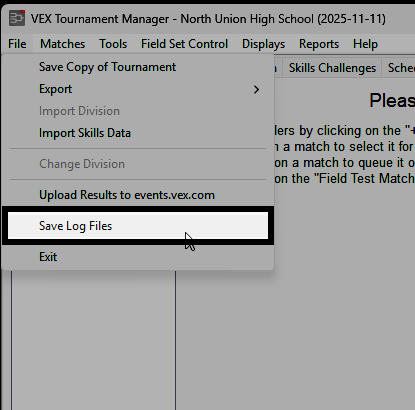

The File menu showing options to save log files or export event data.

Optionally, save log files or export event data from the File menu to the USB drive as well.

Upload Results

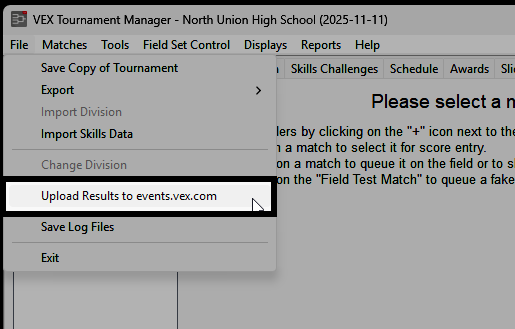

The Upload Results to events.vex.com dialog with the Finalize checkbox unselected.

Select File, then Upload Results to events.vex.com. Leave Finalize unselected – that only happens after Finals – and select Upload Now to send this session's results to events.vex.com.

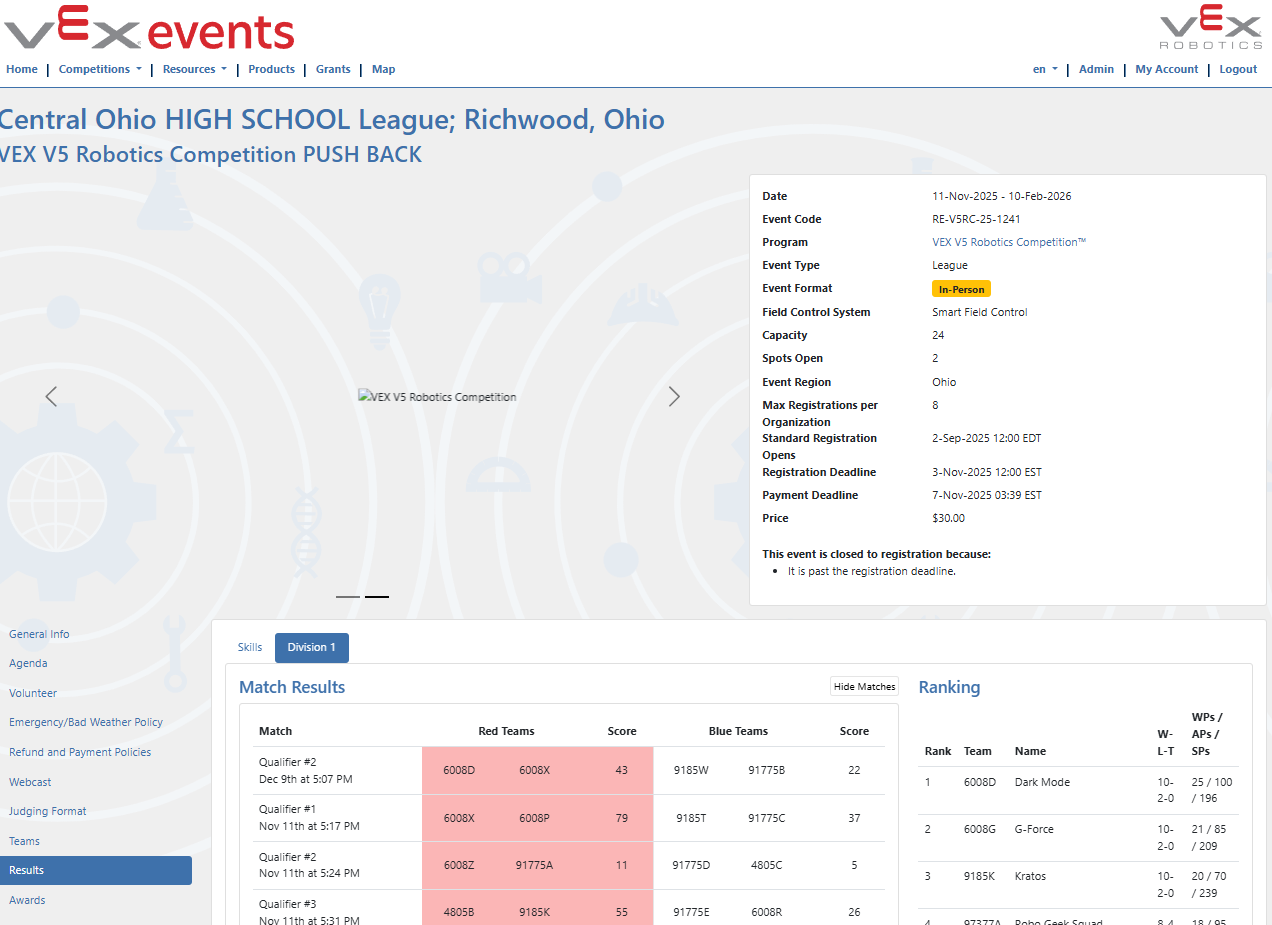

The event's page on events.vex.com showing the uploaded session results.

Check the event on events.vex.com (internet required) to confirm the upload went through correctly. Contact the Program Support Team if anything looks wrong or you have questions.

Subsequent Sessions (Not Finals)

Open the Previous Session's File

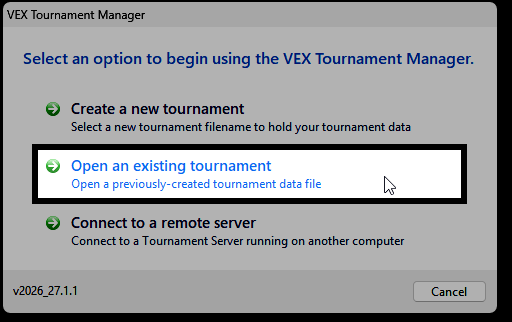

The Tournament Manager start screen with Open an existing tournament highlighted.

Same computer as the previous session: open Tournament Manager and select Open an existing tournament.

If using a different computer: copy the Tournament Manager file from the USB drive to a known location on the new computer's hard drive, then open Tournament Manager and select Open an existing tournament.

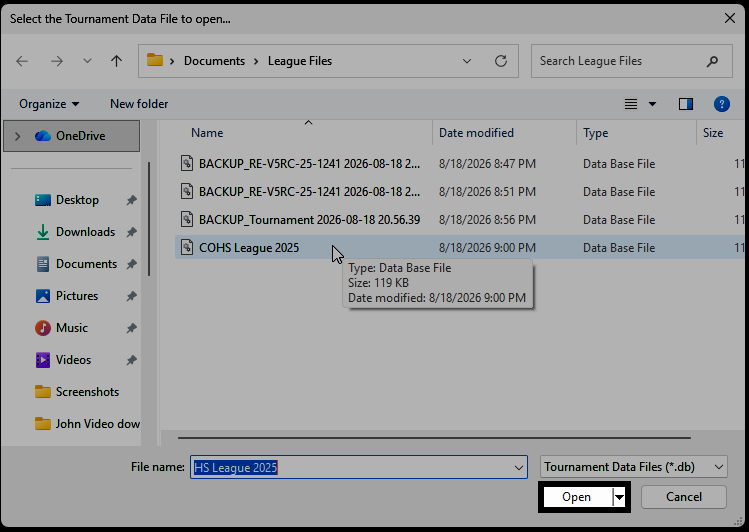

The Open an existing tournament file browser with the previous session's file selected and the Open button highlighted.

Locate and select the previous session's Tournament Manager file, then select Open.

Important: You must use the Tournament Manager file from the previous session. Any other file breaks the carryover of match results and rankings.

A pop-up list of league sessions with the next session and the Continue button highlighted.

Select the correct league session from the list and select Continue.

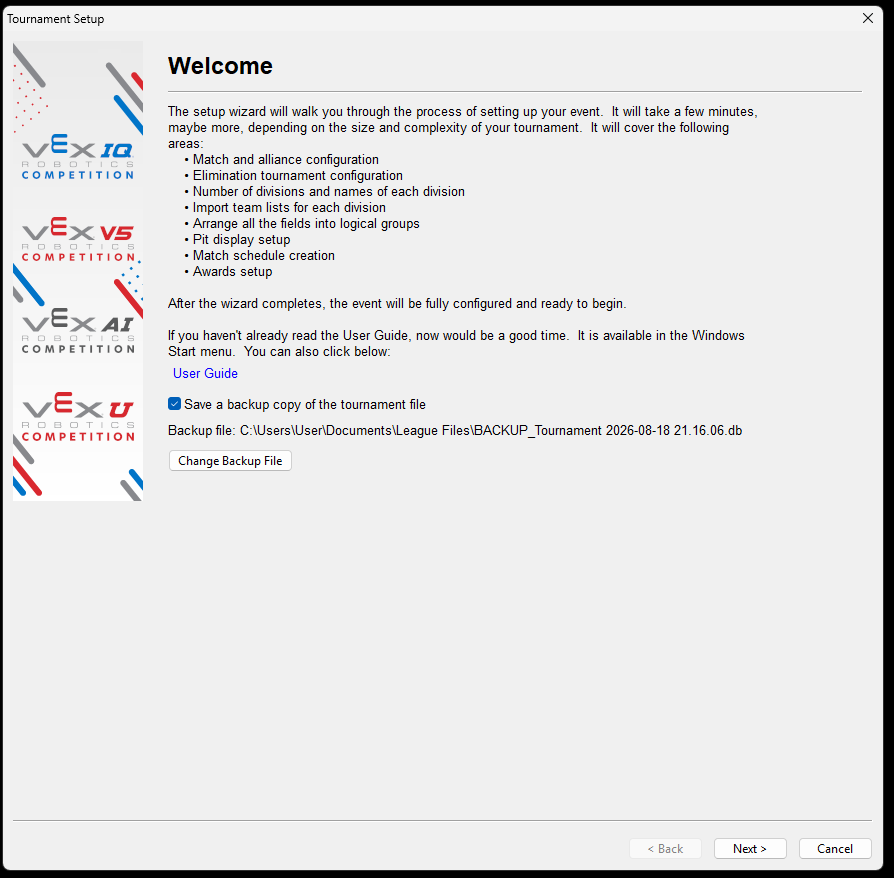

A Tournament Manager setup wizard screen showing settings carried over from the previous session.

Step through the wizard, adjusting settings as needed for this session. The settings from the previous session appear as the default, and the First Session steps above cover each screen.

Complete Setup

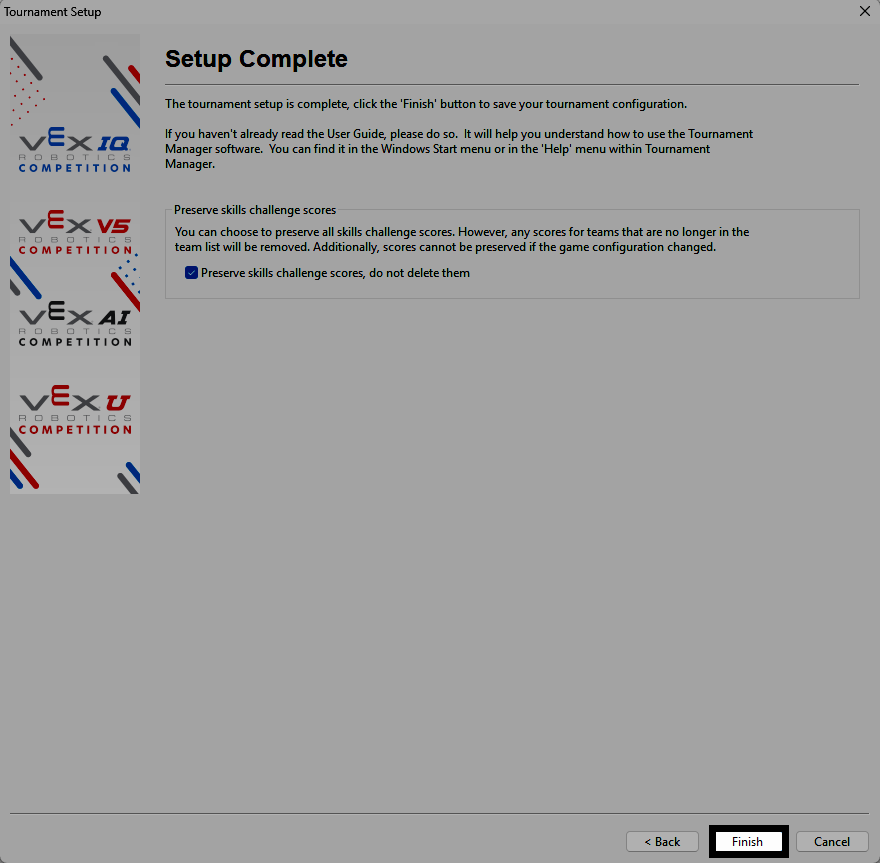

The Setup Complete screen with the Preserve skills challenge scores checkbox selected.

If Preserve skills challenge scores appears, make sure it's selected so skills scores from previous sessions carry over. Select Finish to complete the wizard.

Repeat the steps above from Unselect Absent Teams through Verify the Upload in the First Session section.

Finals Session

A pop-up list of league sessions with the Finals session and the Continue button highlighted.

Select the final league session from the list and select Continue.

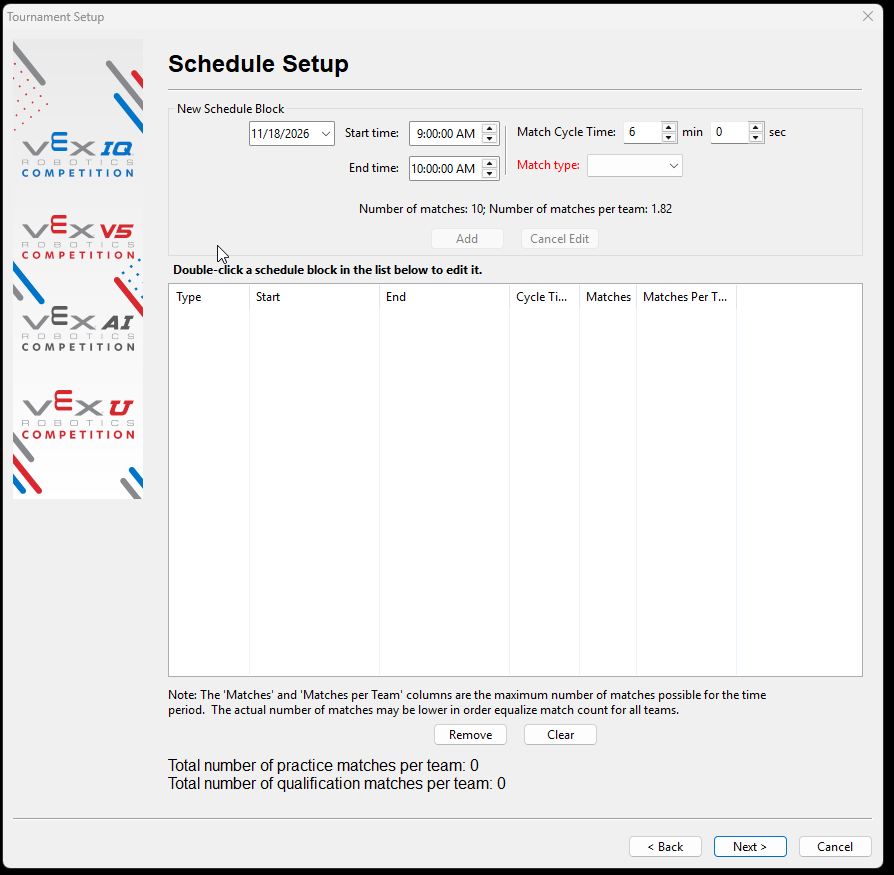

The Schedule Setup screen for the Finals Session with no qualification matches created.

Once the Schedule Setup opens, don't create any qualification matches.

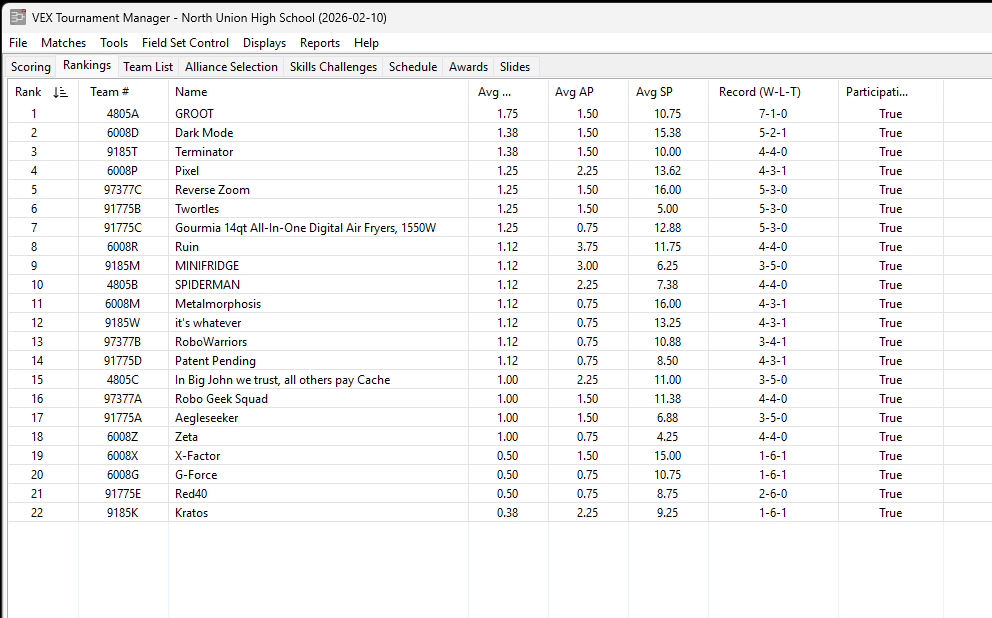

The Rankings tab showing the qualification rankings for the league.

Select the Rankings tab and confirm the qualification rankings are correct before creating VEX IQ Finals Matches or starting VEX V5 Alliance Selection.

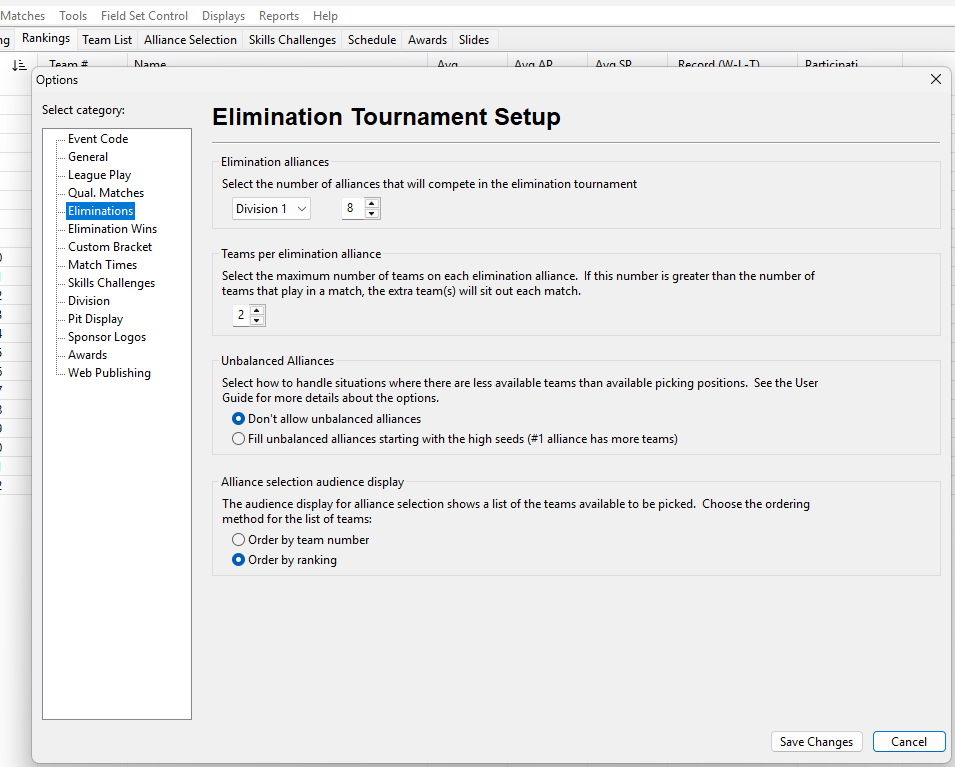

The Finals options screen showing the number of teams and alliances.

Select Tools, Options, Finals to confirm the number of teams and alliances in the finals, and adjust if needed.

For VEX V5

The Alliance Selection tab with Seed 1 automatically populated with the first selecting team.

Select the Alliance Selection tab. The first row on the right (Seed 1) automatically populates with the team that's selecting first.

The Alliance Selection tab with a team selected and the Add Team button highlighted.

When a team accepts to be part of their alliance, select that team and select Add Team.

The Alliance Selection tab with the next seed populated and the Finalize Alliances button highlighted.

The next seed automatically populates. Keep selecting teams until all seeds are filled, then select Finalize Alliances.

A confirmation dialog with Yes highlighted to finalize the alliances.

Select Yes to confirm the alliances.

Run Elimination Matches

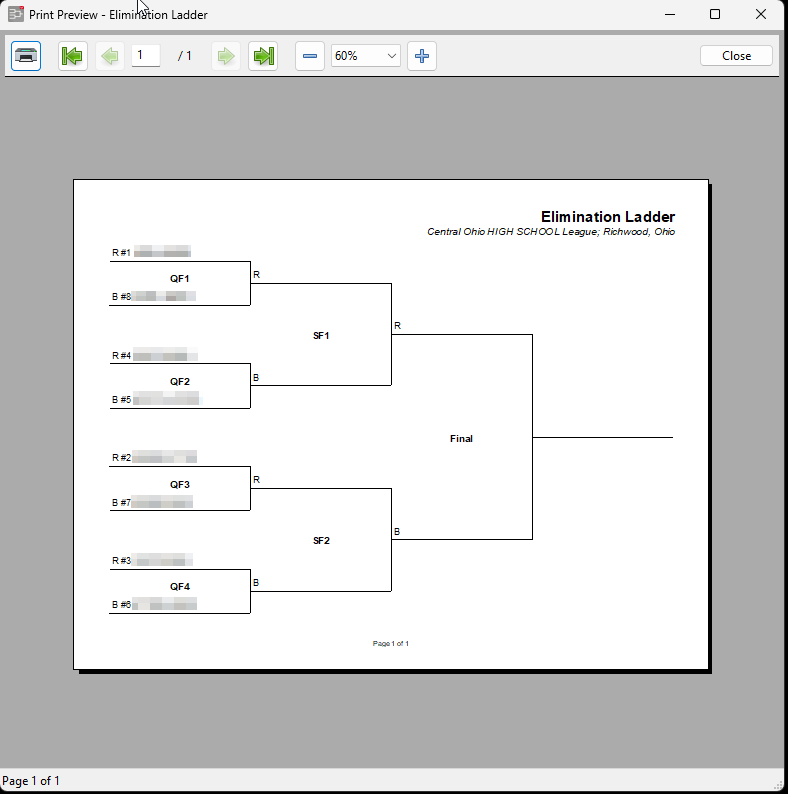

The Elimination Ladder and Announcer Sheets print screen.

Print the Elimination Ladder and Announcer Sheets, then run the elimination matches. Continue with the All Programs steps below.

For VEX IQ and VEX U

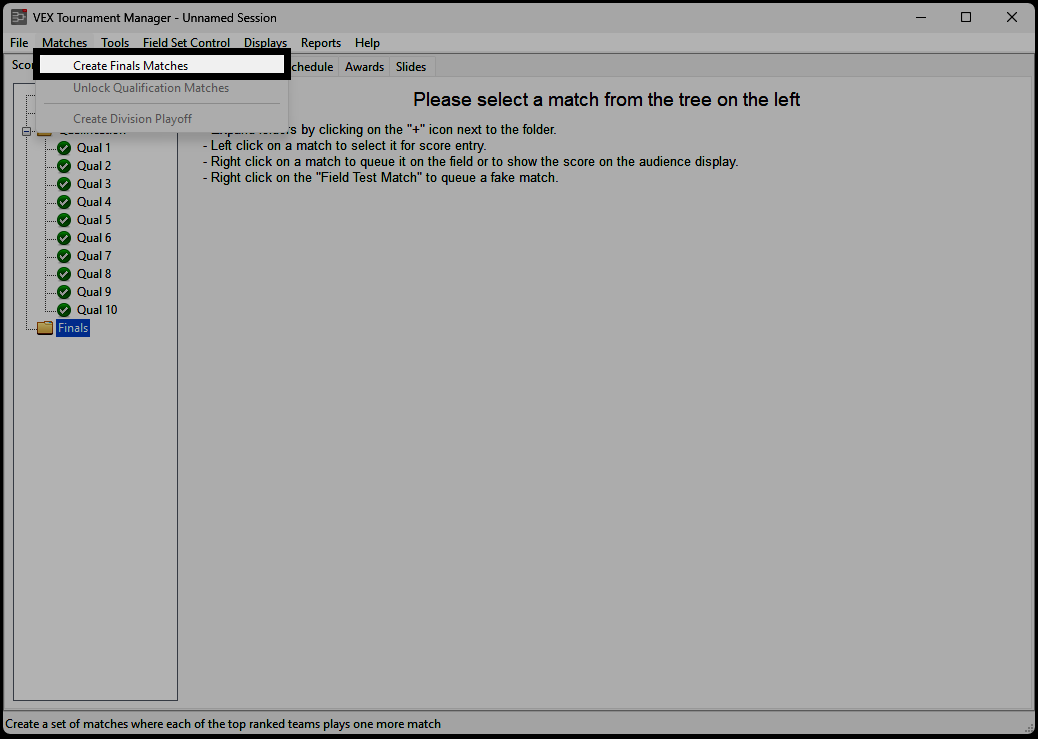

The Matches menu with Create Finals Matches selected.

Select Matches, then Create Finals Matches.

Move Absent Teams to Excluded

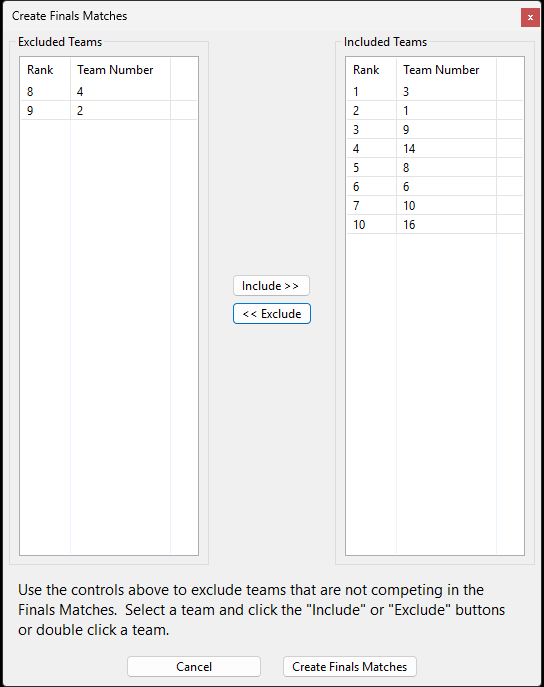

The Create Finals Matches screen with Included and Excluded Teams lists.

Move any absent teams from the Included Teams list to the Excluded Teams list – the number of teams in the finals matches comes from the Finals Matches Setup screen in the wizard, not from the Included Teams list.

The Finals Match List and Announcer Sheets print screen.

Print the Finals Match List and Announcer Sheets, then run the finals matches. Continue with the All Programs steps below.

Finish the Finals Session

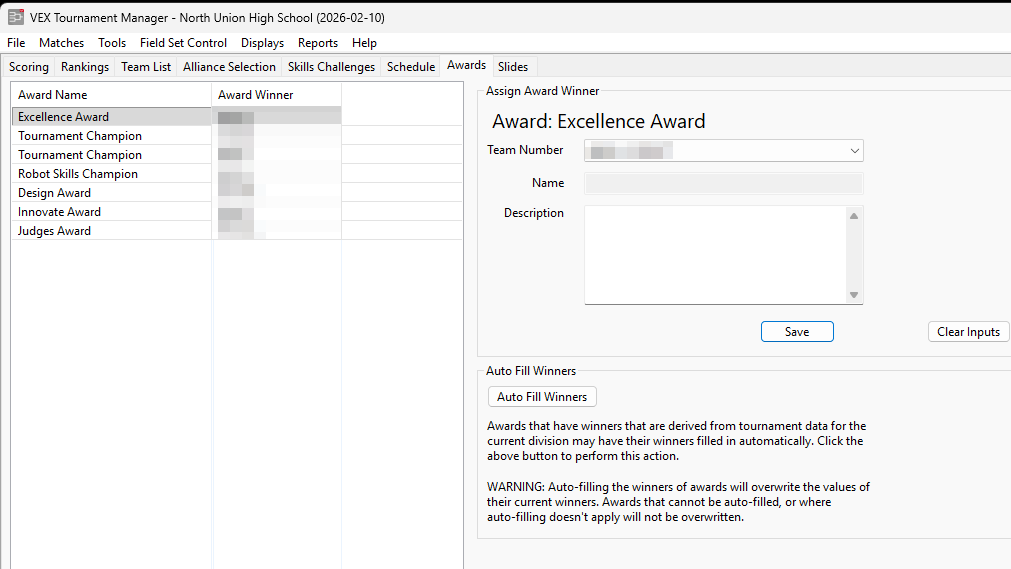

The Awards tab with judged award winners entered.

Once judges finish selecting judged award winners, select the Awards tab and enter each winner. Optionally, select Auto Fill Winners to enter skills winners, print selected Award Ceremony Scripts, and present those awards between elimination/finals matches.

The Awards tab with Auto Fill Winners selected and the Excellence Award shown last.

Once elimination/finals matches are complete, select the Awards tab, select Auto Fill Winners, print the remaining Award Ceremony Scripts, and present the remaining awards. Present the Excellence Award last as it's the highest judged award.
